DURA Automatic Dry Type Wire Drawing Machine with Long Service Life and Flexible Manufacturing

1
MOQ
$5,650-5,700
Prijs
DURA Automatic Dry Type Wire Drawing Machine with Long Service Life and Flexible Manufacturing
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Inlaatdiameter: 2.5~6.5mm
Uitlaatdiameter: 0,75 ~ 2,5 mm
Spanning: 380/415/440/220
Stroom: 7 ~ 18 kW
Afmetingen: 1520x810x1700mm
Gewicht: 2000 kg
Maximale tekenpas: 1 - 10
Treksterkte: >110 kg/mm2
Max. walsdraaddiameter: 6,5 mm
Min afgewerkte draaddia: 0,75 mm
Maximaal reductiepercentage: 30%
Ontworpen reductiepercentage: 78-88,5%
Maximale bloksnelheid: 245 m/min
Totaal vermogen: 18,5-30 kW
Kerncomponenten: Versnelling, versnellingsbak
Markeren:

Automatic Wire Drawing Machine

,

Long Service Life Wire Drawing Machine

,

Flexible Manufacturing Dry Type Wire Drawing Machine
Basis informatie
Plaats van herkomst: Jiangsu, China
Merknaam: DURA
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

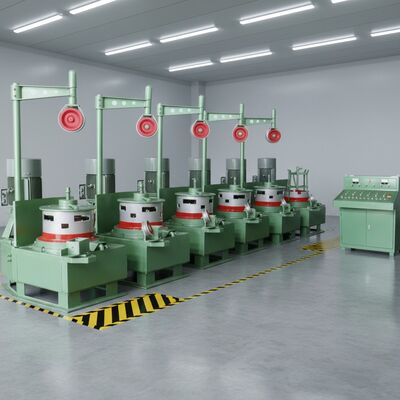

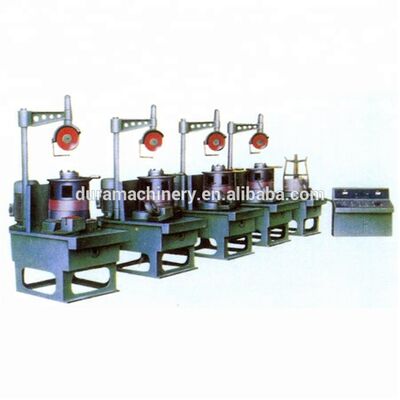

DURA Dry Pulley Type Automatic Wire Drawing Machine OTO Type
LW Series Dry Type Wire Drawing Machine
Applications
This pulley or OTO type wire drawing machine is ideal for drawing steel wire materials including high-, medium-, and low-carbon steel, as well as copper, aluminum, and alloy materials. These machines are widely used in nail, screw, and rivet manufacturing facilities.
Machine Structure
The equipment consists of a main reduction box, die casing, wheel frame, wire brace, and electrical control system. The spinning drawing blocks are driven by JZT or Y series motors, with gear coupling running changeful gears to reduce speed. The drawing blocks are vertically fixed in a sealed box body with gear pairs lubricated with oil.
To reduce residual heat on the block surface, a cooling device is installed in the inter-wall of the block.
Operation Features
The machine operates with crawl or linkage functionality. A safety halt gear is installed at the operation block position for enhanced operational safety.
Technical Specifications
Item Unit LW-n/560 LW-n/450 LW-n/350
Max. drawing pass (n) - n: 1 - 10 n: 1 - 8 n: 1 - 8
Tensile strength of wire rod Kg/mm² >110 128 >140
Max. dia. of wire rod mm 6.5 3.4 2.5
Min. dia. of finished wire mm 2.5 1 0.75
Typical configuration - LW1-6/560 LW1-7/450 LW1-6/350
Max. average reduction percent % 30 20 21
Designed total reduction percent % 78-88.5 77.9 78
Max. speed of block m/min 245 (block 6) 346.9 (block 7) 200 (block 6)
Total power kw 18.5-30 7.5-11 7.5-11
Weight kg 2000 1500 1000
Overall dimensions mm 1700×1150×1750 1520×810×1700 1400×800×1500
