Kenmerken

Specificaties

Hartinfarct: 4 takt

Cilinder: 2

Koude stijl: Watergekoeld

start: Ander

Afmeting (l*b*h): 1140 x 620 x 1070 mm

gewicht: 420

Garantie: 1 jaar

verplaatsing: 2251cc

Emissienorm: 2251cc

Nominale kracht/snelheid: 1500 tpm

testrapport van machines: Mits

video uitgaande inspectie: Mits

kerncomponenten: Motor

belangrijkste verkoopargumenten: Eenvoudig te bedienen

vermogen(w): 24HP

Startsysteem: handmatig starten

Markeren:

2105A model diesel engine water-cooled

diesel engine with water-cooled system

2105A-3A diesel engine water-cooled

Basis informatie

Plaats van herkomst: Jiangsu, China

Merknaam: DURA

Certificering: as per customer's request

Betalen & Verzenden Algemene voorwaarden

Galerij

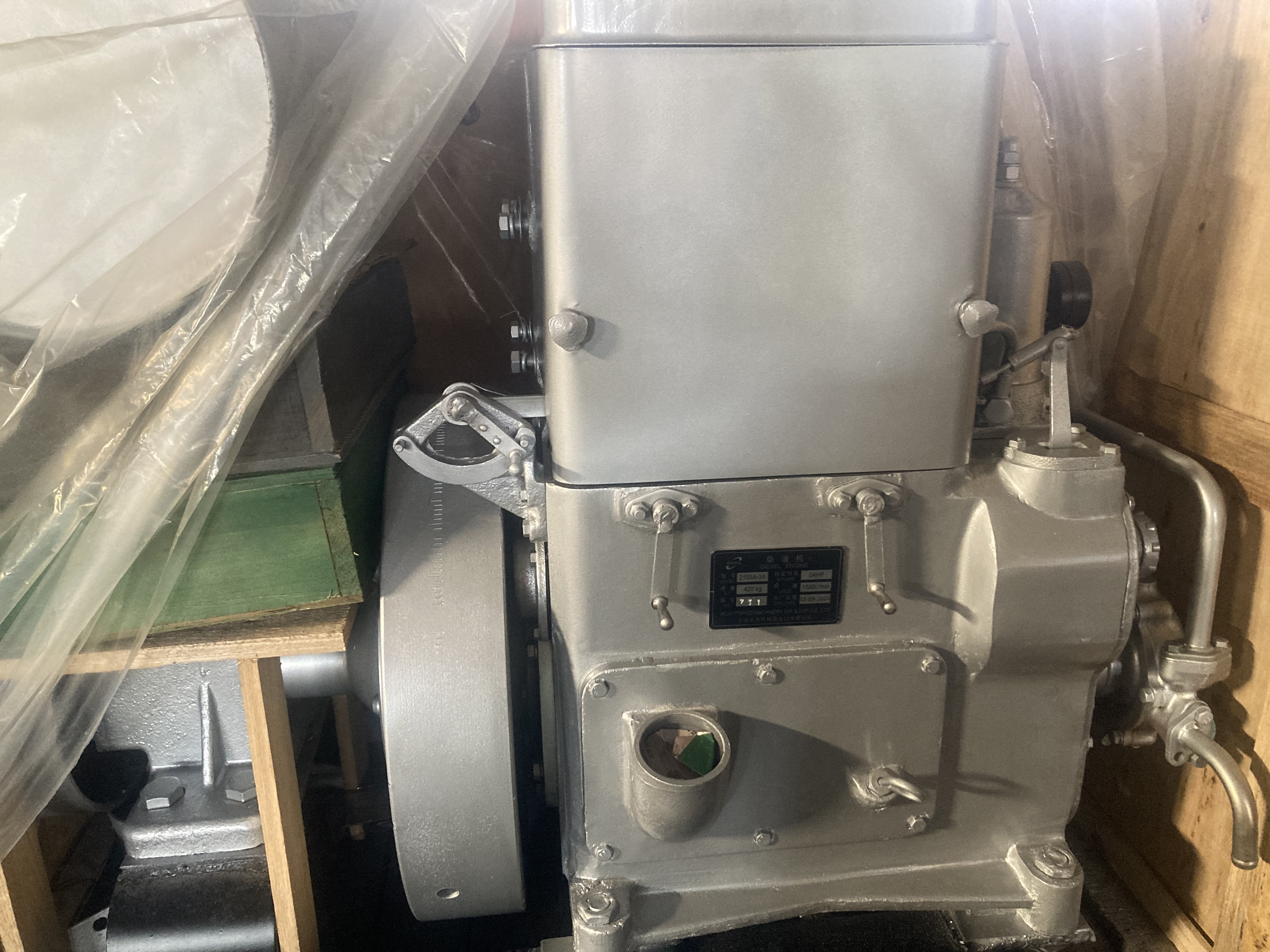

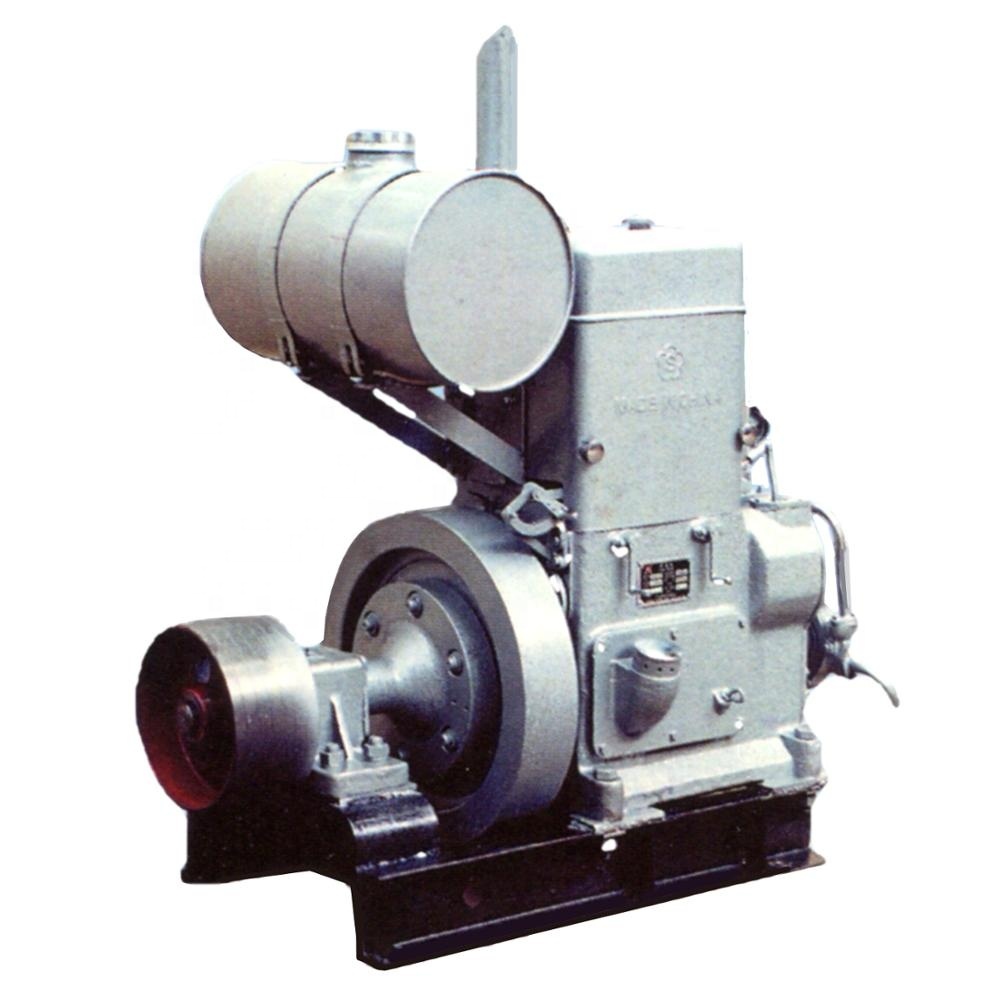

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A

Productomschrijving

Product Description

Agricultural diesel engine units model 2105A-6, 2105A-3A and 2105A-33A are three variants of 2105A diesel engine. They are applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

* Advanced technique after long-time and rich experiences of production * Compact, rigid and reliable, easy to operate and maintain * With separate bearing assembly and drive pulley * With sliding-type mounting frame.

Model	2105A-3A	2105A-6	2105A-33A
Type	Vertical,4-Stroke,Swirl combustion chamber
Cylinder number	2	2	2
Bore(mm)	105	105	105
Stroke(mm)	130	130	130
Compression Ratio	20:1	20:1	20:1
Rated Rotation(r/min.)	1500	1500	1500
Rated Output(kw)	17.65	17.65	17.65
Over-load Output(kw)	19.41	19.41	19.41
Specific Fuel Consumption (g/kw.h)	251.6	251.6	251.6
Specific Oil Consumption (g/kw.h)	2.04	2.04	2.04
Cooling System	Open-type, water-cooling
Method of Starting	Manual starting
Net Weight(kg)	430	380	430
Dimensions(L x W x H)(mm)	1140 x 620 x 1070	1030 x 620 x 1070	1140 x 620 x 1070
